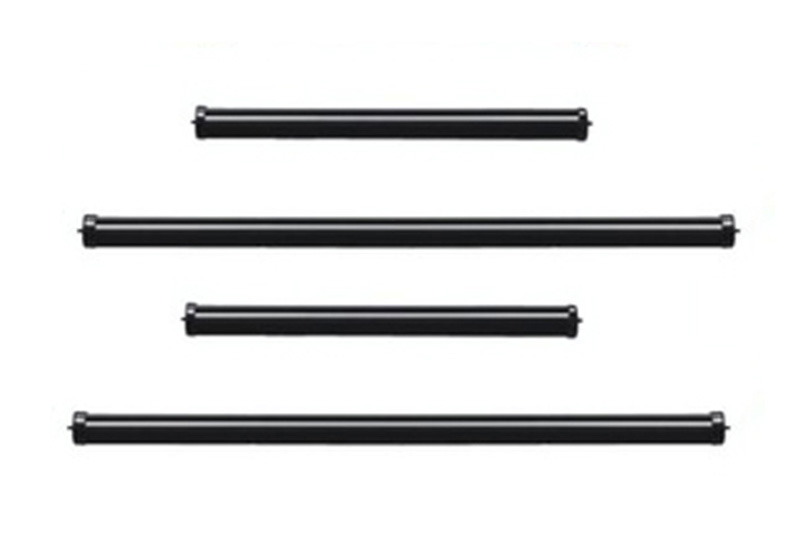

Resistance up to 10TΩ
Resistance tolerance: ±1% to ±10%
Rated voltage up to 14KV
TCR as low as ±25ppm/℃
Customization available
High voltage generator; Precision high voltage power resource; High reliability X-rays system
Rated Voltage: 3KV to 14KV (DC)
Resistance Range: 5Ω to 10TΩ
Tolerance: ±1% ±2% ±5% ±10%
TCR: ±25ppm/℃ ±50ppm/℃ ±100ppm/℃ ±100ppm/℃
VCR: ≤20ppm/V
Rated Power: 1W to 5W
Stability: ±0.5% (1000hours, 125℃)
Overload: ΔR≤0.5% (10 seconds @150% rated power)
Thermal Shock: ΔR≤0.25%
Moisture Resistance: ΔR≤0.4%
Climate Category: 55/125/56
Construction: Ceramic core
Case: High temperature silicone conformal encapsulation
Lead Material: Tinned copper solid wire, AWG as specified in selection table
Lead Strength: Capable of withstanding a five pound pull force axially
| RPE Series | 22 | 42 | |

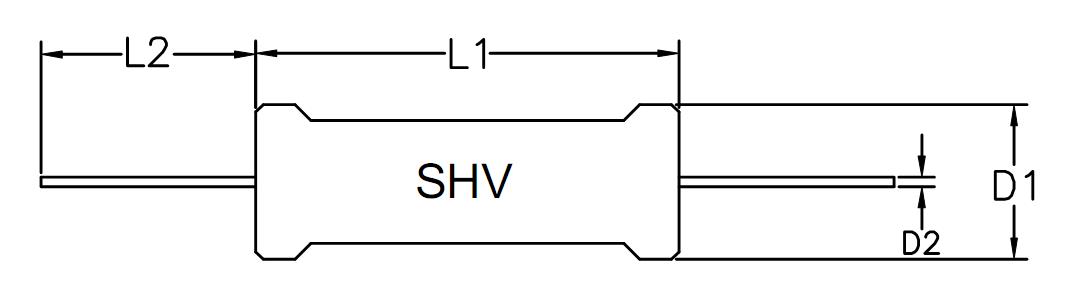

| L1 (mm) | 22 | 42 | |
| L2 (mm) | 28±3 38±3 *Default value, customization available | ||
| D1 (mm) | 5±1 | ||
| D2 (AWG) | AWG20/18 | ||
| Rated Power (W) | 01/2/3 | 02/3/5 | |
| Rated Voltage (KV) | 3/4 | 10/14 | |
| Resistance Range (Ω) | Max | 1T | 10T |
| Min. | 5 | 5 | |
| Tolerance (± %) | 1/2/5/10 | ||
| TCR (± ppm/℃) | 25/50/100/1000 | ||
| Stability | ±0.5% (1000hours, 125℃) | ||
