Non-inductive design
Resistance ranged from 1Ω to 20MΩ
Resistance tolerance: ±1% to ±20%
Power up to 500W
Excellent high-frequency characteristics
Anti-moisture, anti-pulse
Customization available
Radar system;Broadcasting transmit devices;Frequency convertor;Loading system of high and medium frequency device.
Resistance Range: 1Ω to 20MΩ
Tolerance: ±1% ±5% ±10% ±20%
TCR: ±200ppm/℃
Rated Power: 10W to 500W
Stability: ±5% (1000hours, rated power)
Overload: ΔR≤2% (10 seconds @150% rated power)
Moisture Resistance: ΔR≤2.5%
Max. Operating temp.: 350℃
Climate Category: 55/125/56

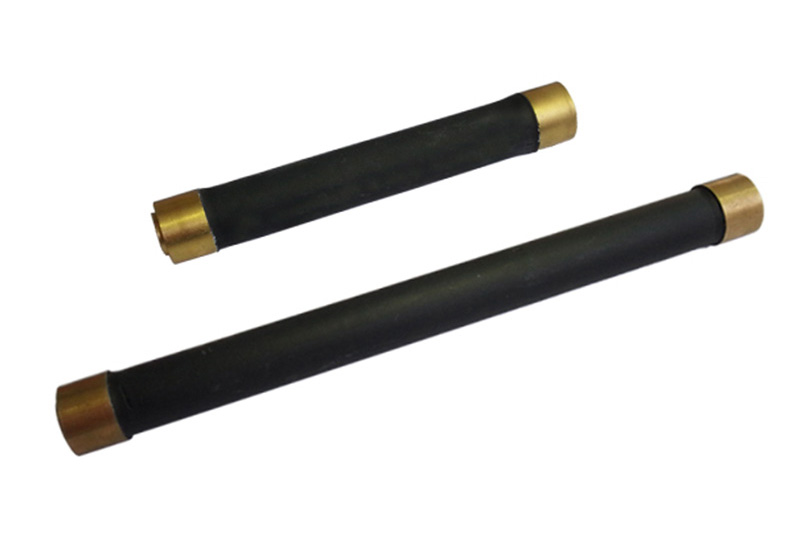

Construction: Ceramic rod
Case: High temperature silicone conformal encapsulation
Terminal: Plated copper, threaded M4/M6

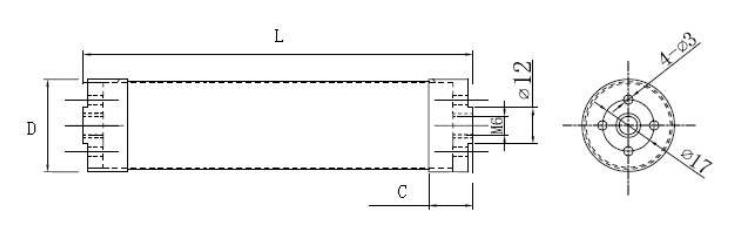

| RCP Series | 10 | 20 | 30 | 60 | 100 | 150 | 300 | 500 |
| L (mm) | 44.5 | 51 | 63.5 | 127 | 152.5 | 203 | 305 | 457 |
| D (mm) | 12.7 | 12.7 | 19 | 19 | 25 | 25 | 25 | 25 |
| C (mm) | 6.4 | 6.4 | 12.7 | 12.7 | 19 | 19 | 19 | 25 |
| Rated Power (W) | 10 | 20 | 30 | 60 | 100 | 150 | 300 | 500 |
| Tolerance (± %) | 1/5/10/20 | |||||||
| TCR (± ppm/℃) | 200 | |||||||
| Stability | ±5% (1000hours, @rated power) | |||||||
